| PIC1002
Internet Protocol Camera (IPcam) |
More
Information |
|
 |

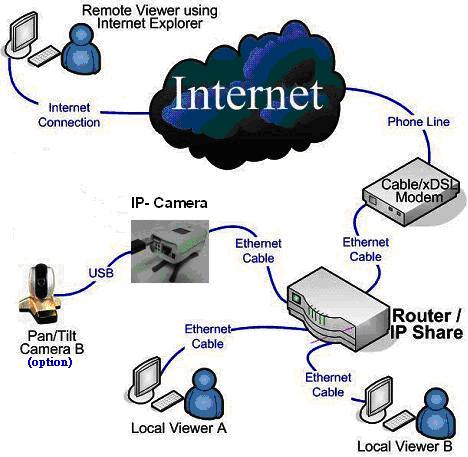

»Connection
Diagram
|
|
| |
|
| |
|
| |
|
| |
|
 |
|
 |
 |
|
|
|
|
Features
Support
resolution up to 640 x 480 pixels
32-Bit RISC CPU inside
1MB Flash Memory & 8MB Dynamic Memory
10/100Mbps Fast Ethernet connection
Built-in one USB port to let one webcam
serve as another IP cam
Built-in Ir-LED for night vision
Web-configurated
Built-in LCD display and LED indicators
Remote access using any Java enabled web browser
network protocol: HTTP,TCP/IP,UDP,SMTP PPPoE, DDNS,DNS,SNTP,BOOTP,DHCP
FTP,SNMP
Specifications
Sensor
type: VGA CMOS sensor
Resolution: VGA 640 X 480, Up to 15 fps
Interface: USB 1.1
Lens: F# : 2.8
View of angle : 54°
Focal distance : 3cm~ infinite
Focus type : manual
Exposure Control: Auto
White Balance: Auto
Image Format: RGB24
Dimensions : 5.3cm x 9cm x 6.2cm (Upper casing)
System Requirement
500 MHz Intel Pentium III or faster
Minimum 64MB RAM
CD-ROM drive
200MB free hard disk space
Modem or above for Video conferencing
OS
Microsoft Windows XP/2000/ME/98
Power Input
5.3VDC 1A Power Adapter
.JPG)
|
|
|
| |
|
|
|
|
|
|
