Features

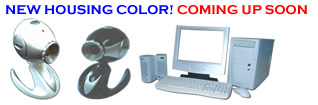

PROLiNK's PCC 900 is a compact USB PC Camera that is compatible with Wins 98SE/2000/ME/XP. Designed in a stylish, compact and handy way, it is the ultimate choice for a PC Camera. There is a lens mounted on the lens holder, which is designed to get the finest tune of the camera focusing by just slightly adjusting with your fingertips.

PCC 900 is a USB device for your PC, which complies with Windows Plug & Play rule, which makes installation as easy as ABC. It also comes with software bundle of VP-Eye which allows you to product professional digital movie, manage your photos, making photo greeting cards and editing of photos to your friends, relatives, family or even to your loved ones.

Specifications

• Image Sensor: 1/4" CMOS
• Picture Element: 640H x 480V Pixels
• Picture Format: 160 x 120, 320 x 240, 640 x 480, CIF, QCIF
• Data Format: RGB 24,1420
• Interface: Compatible with USB 1.1 and USB 2.0
• Frame rate: 30fps
• Minimum Illumination: 6 Lux
• S/N Ratio: >48dB
• Definition: >300 TV Line
• Aperture/Focal Range: F2.0/f3 60,80mm to infinity
• Viewing angle: 92 degree horizontal
• Camera control: Saturation, Contrast, Sharpness
• White balance/Exposure: Auto, Manual
• Working/Standby current: <130mA/<10mA

System Requirements

• PC with Pentium MMX CPU 200MHz or above
• An available 1.1 or 2.0 USB port
• Operating system: Windows 98SE/2000/ME/XP
• 32MB of system RAM
• 12MB of free hard disk space
• CD ROM drive for installation drive
